Main Features |
|||||
¡Ü Up to 32 locations per network |
¡Ü Uo to 256 channels per location |
||||
¡Ü Up to 1000 channels per network |
¡Ü Modules can be mixed and matched |
||||
¡Ü Local display can be provided |
¡Ü Multiple host support via global data |
||||
¡Ü Low cost 2-wie twisted pair cabling |
¡Ü On board LED satus indicators |
||||
¡Ü 16 bit measurement performance offering sensitivity as high as 0.625§Å |
|||||
¡Ü Individual channel programming of sensor type and speed |
|||||
¡Ü Digital configuration permitting mix and match of anlong and digital channels |
|||||
¡Ü All data is available at any point on the network |
|||||
¡Ü Rugged DIN rail mounted format |
|||||
|
|||||
Applications for Datascan Include |
Mix and match Sensor Types |
||||
¡Ü Remote data acquisition |
¡Ü Module type ; 7327 |
||||
¡Ü Process monitoring |
¡Ü No, of Channels ; 16-ch. |
||||
¡Ü Industrial process control |
¡Ü Voltage DC ; 0 ~ 10VDC |
||||
¡Ü Supervisory control |
¡Ü Current ; 4 ~ 20mA |
||||
¡Ü Laboratory automation |
¡Ü Isolation ; 200V |
||||
¡Ü Energy management |
¡Ü 7011 network Interface Module |
||||
¡Ü Product testing |
Isolated RS-232 port for host |
||||
¡Ü Building automation |
Isolated RS-485 port for networking |
||||
|
|
|
Used when PC is renote from network |
||
Technical Data for the Datascan Range |
|||||
A/D Converter |
16 bit, 0.625§Å Resolution |
||||
Measuring Speed |
Second per 40 channels |
||||
Measuring Input |
Thermocouples, DCV and Current |
||||
Input Channels |
16 channelss, (Max 256 channels) |
||||
Measuring Range |
Thermocouples, 0 ~ 10VDC, 4 ~ 20mA |
||||
Host Communication |
RS-232C |
||||
Baud Rates |
4800, 9600, 19200, 38400 |
||||
Network Communication |
RS-485 (Transmission speed : 93.75Kb) |
||||
Battery Backup Life |
5 years unpowered |
||||

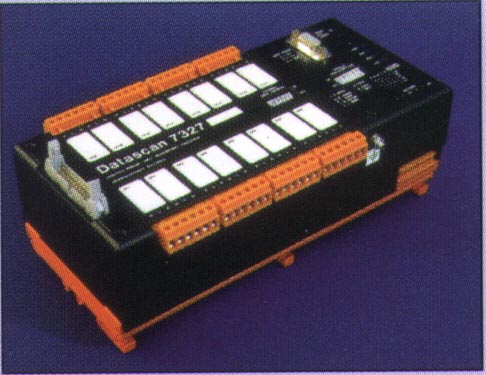

7327 16 channels Expandable |

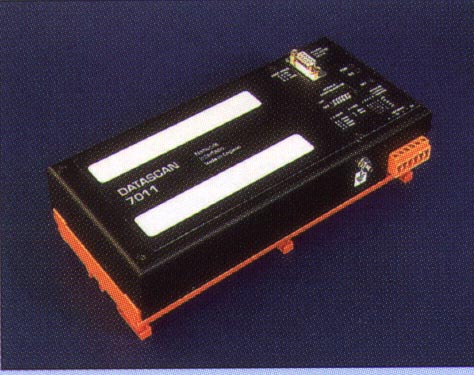

7011 Network Interface Module |

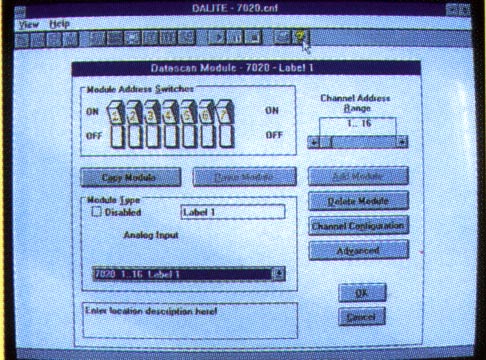

DALITE for Windows 3.1 & '95 |
