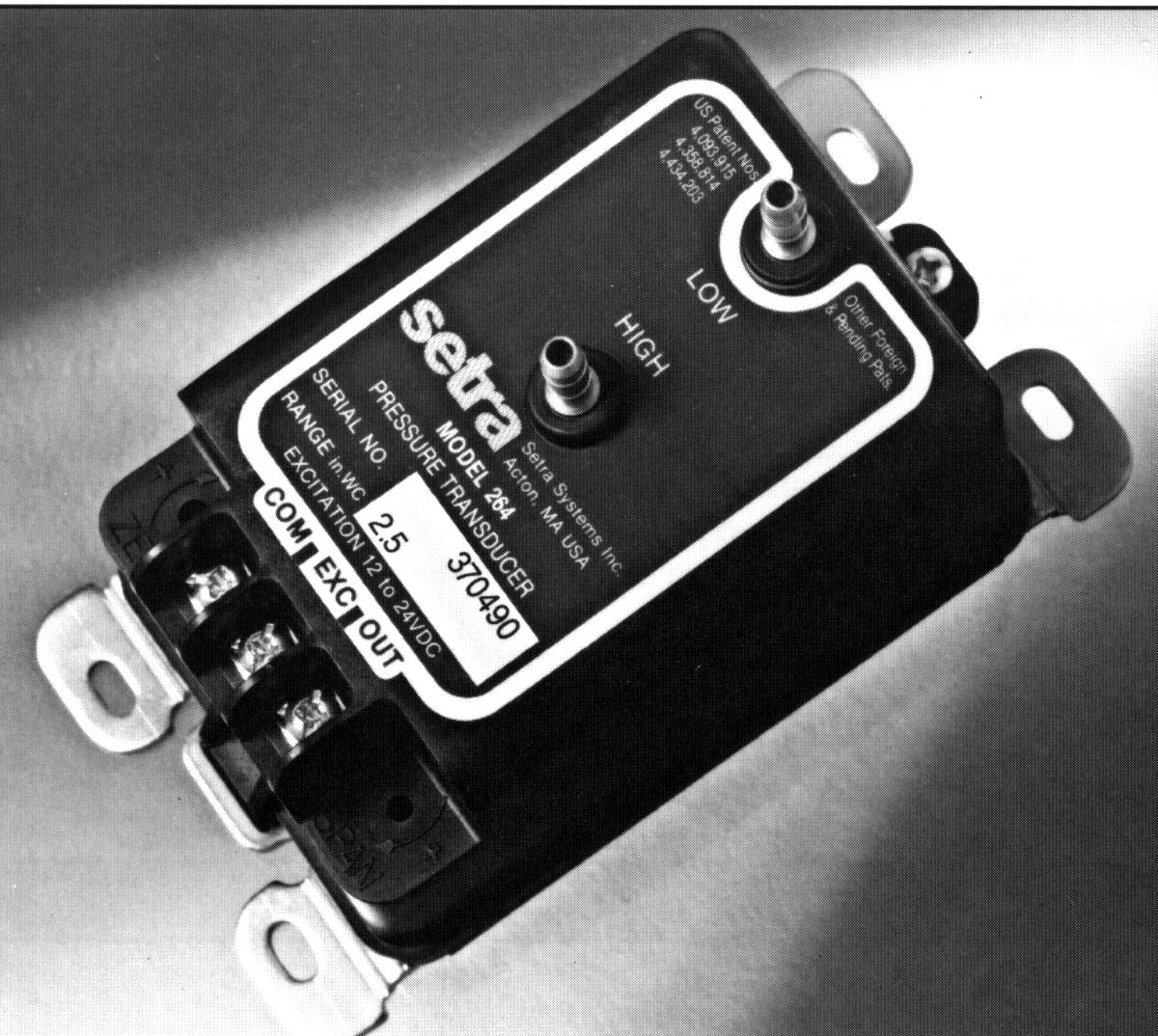

DIFFERENTIAL PRESSURE TRANSDUCERS |
||||||
|
||||||
Performance Data |
STANDARD |
OPTION 717 |
||||
Accuracy* RSS (at constant temp.) |
±1.0% FS |
±1.0% FS |
||||
Non-Linearity (BFSL) |
±0.98% FS |
±1.0% FS |
||||
Hysteresis (Infinite resolution) |
0.20% FS |
0.20% FS |
||||
Non-repeatability |
0.10% FS |
0.10% FS |
||||
|
||||||
Enviromental and Mechanical Data |
||||||
Temperature ¢µ(¡É) |
0 to 175(-18 to 79) operating temperature |
|||||
Case |
Fire-retardant glass filled polyester |
|||||
Pressure Connections |
3/16" O.D barbed bress pressure fitting for |
|||||
|
1/4" push-on tubing |
|||||
|
Positive and reference port on top |
|||||
Electrical connections |
Screw terminal strip on top of case |
|||||
Zero and Span Adjusts |
Accessible on top of case |
|||||
|
||||||
Electrial Data Model 264 |
|
|||||
Circuit |
3-wire ( + in, + out, common) |
|||||
Excitation (unregylated) |
12.0 - 28.0 VDC, <10 milliampers |
|||||
Full Scale Output |
0 - 5 VDC |
|||||
|
|
|
|
|
||
Electrial Data Model C-264 |
|
|
|
|||
Circuit |
2-wire |
|||||
Full Scale Output |
4 - 20mA (16mA output Span) |
|||||
Electrical Load |
0 to 800 ohms |
|||||
Supply Voltage (VDC) |
15 to 32 VDC |
|||||
|
|
|
|
|
||
Pressure Ranges and Media |
|
|
|
|||
Unidirectional |
0 to 0.1, 0.25, 0.5, 1, 2.5, 5, 10, 25" W.C |
|||||
Bidirectional |
0 to ±0.1, 0.25, 0.5, 1, 2.5, 5" W.C |
|||||
Pressure Media |
Typically air or similar non-conducting gases |
|||||
Maximum Line Pressure |
25" W.C Gage |
|||||
Overpressure |
5X Full Scale negative direction and 5X FS |
|||||
|
|
or 10" W.C in positive direction |
||||
